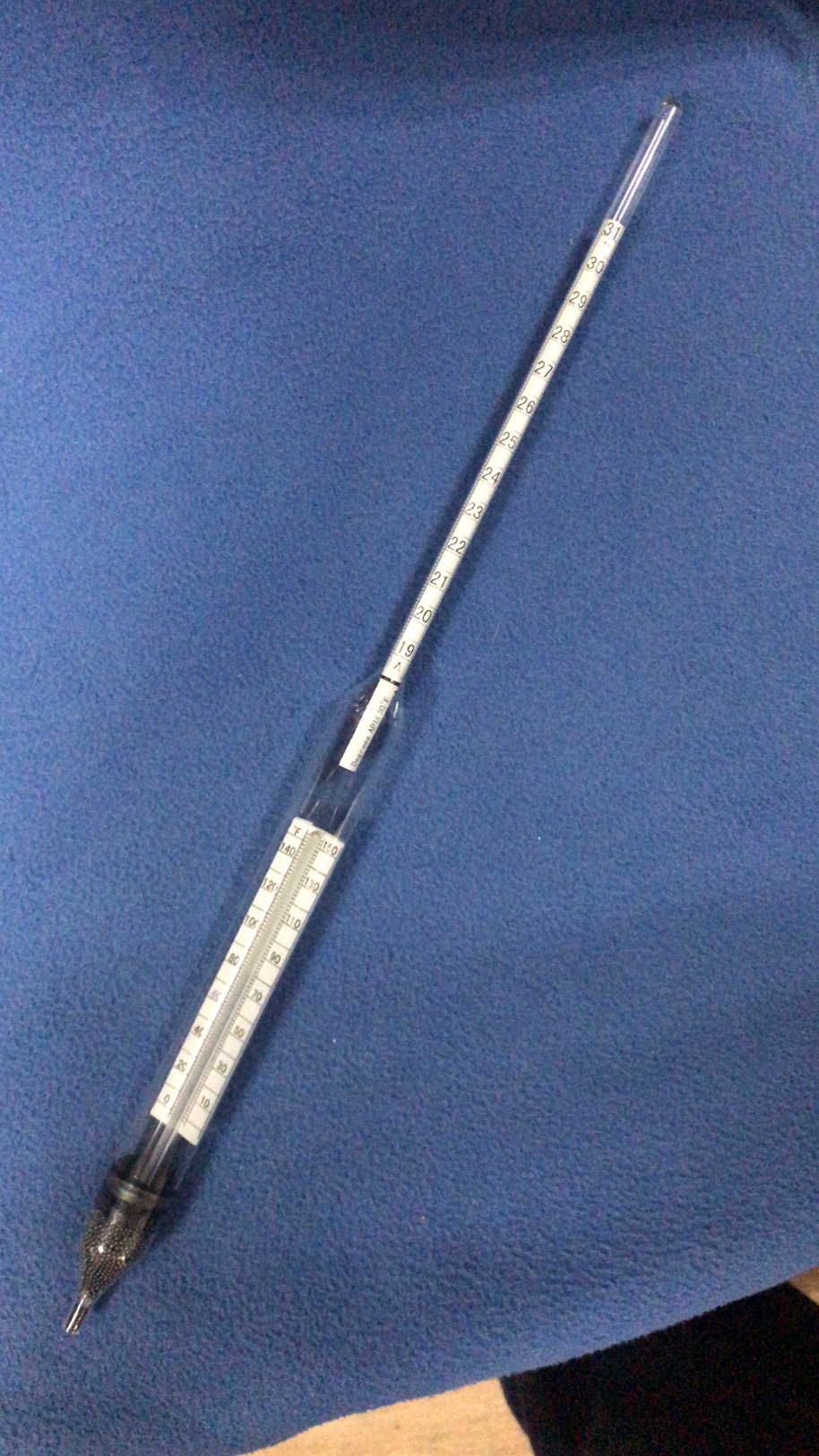

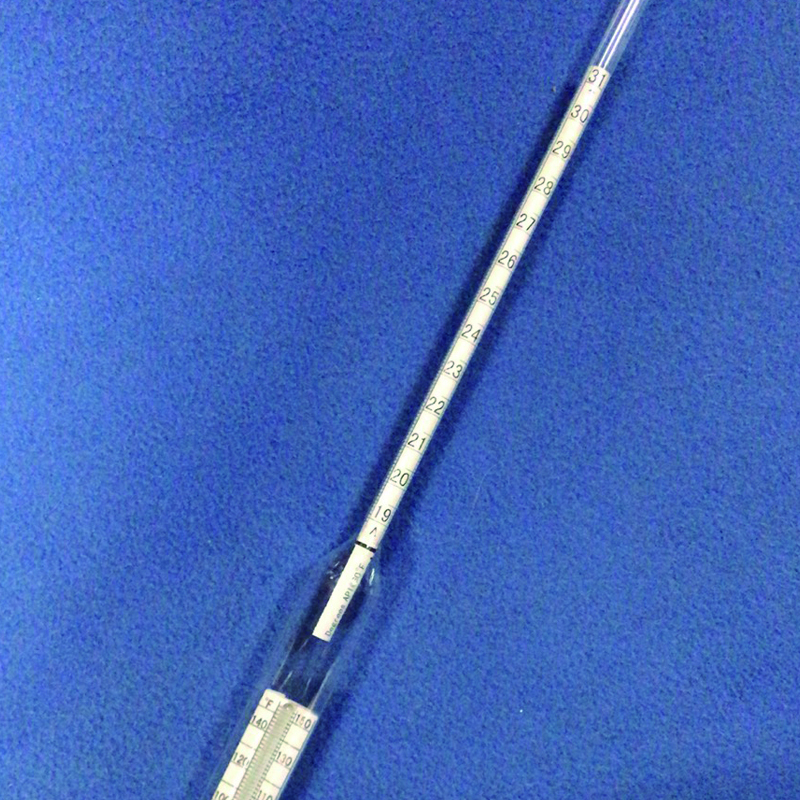

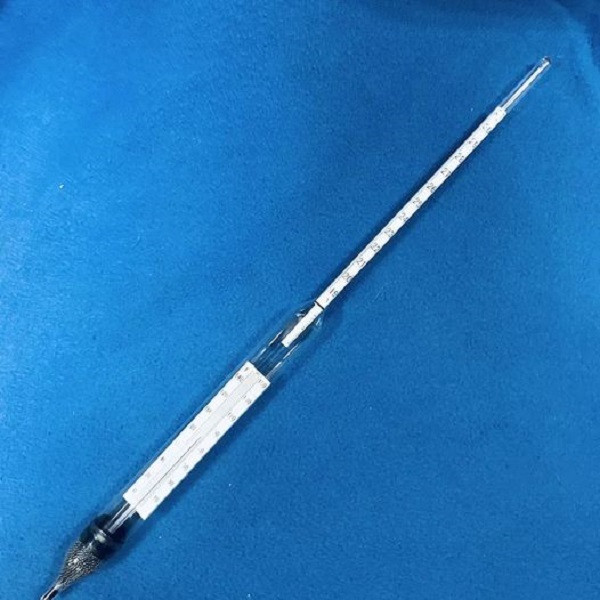

API ASTM ThermoHydrometer, 19 to 31 degree API Range, 30 to 220 degree F, 380mm Length

API ASTM ThermoHydrometer, 19 to 31 degree API Range, 30 to 220 degree F, 380mm Length

API GRAVITY MEASUREMENT: A DEFINITION

The American Petroleum Institute gravity, or API gravity, is a measure of how heavy or light a petroleum liquid is compared to water: if its API gravity is greater than 10, it is lighter and floats on water; if less than 10, it is heavier and sinks.

API gravity is an inverse measure of a petroleum liquid's density relative to that of water.

It is used to compare densities of petroleum liquids. For example, if one petroleum liquid is less dense than another, it has a greater API gravity.

Although API gravity is mathematically a dimensionless quantity, it is referred to as being in 'degrees'.

API gravity is graduated in degrees on a hydrometer instrument. API gravity values of most petroleum liquids fall between 10 and 70 degrees.

Manufactured to ASTM specifications, these units have become the industry standard for close, accurate readings.

Suitable for certification and as such serve as primary reference standards in many government and private laboratories.  Temperature range is 0 to 150 F degrees with 2 degree divisions.

API Chapter 9.3 of the MPMS ASTM D and E100. These instruments combine API gravity scale with a thermometer in the body and are the standard and preferred size normally used for determining the gravity of crude oil and other liquid petroleum products.

Length:15 inch (374 to 380 mm)
Diameter: ¾ to 1 inch (18 to 25 mm)
Thermometer Range: 0 to 150 F

SELECT MODEL

• Thermohydrometers conform to ASTM specifications

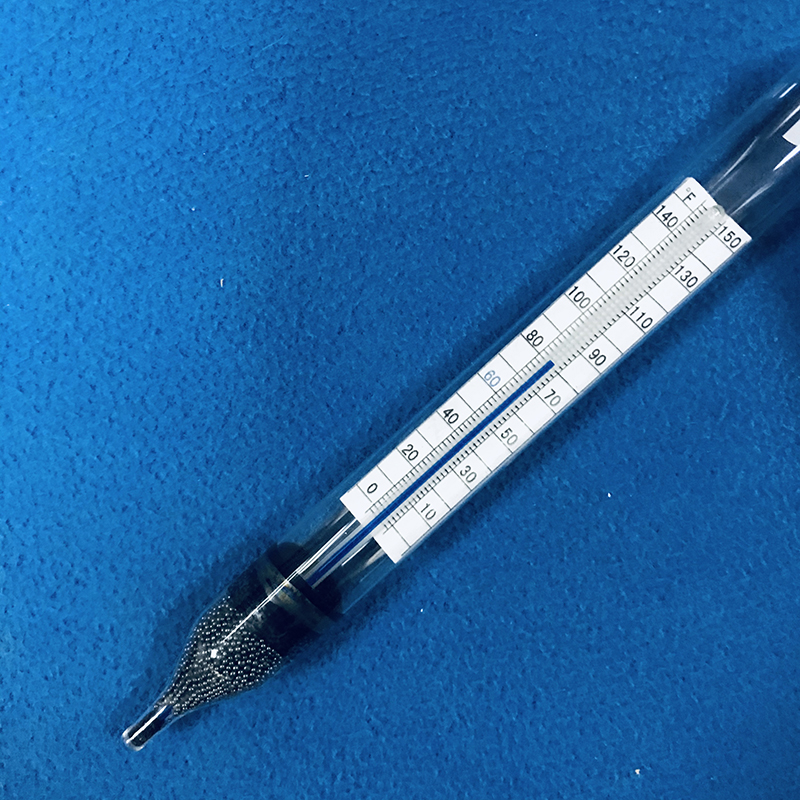

• Unit includes thermometer in the body
• Temperature of standardization is 60 degree F
• 0.1 degree division
• 380mm Length

Products Description

Product Specifications

Length	380 millimeters
Lower Temperature Rating	30 degrees_fahrenheit
Number of Items	1
Part Number
Size	19/31 API, 0.1 degree Division, 380mm Lengt
Temperature Range	30/220 degrees_fahrenheit
Upper Temperature Rating	220 deg
