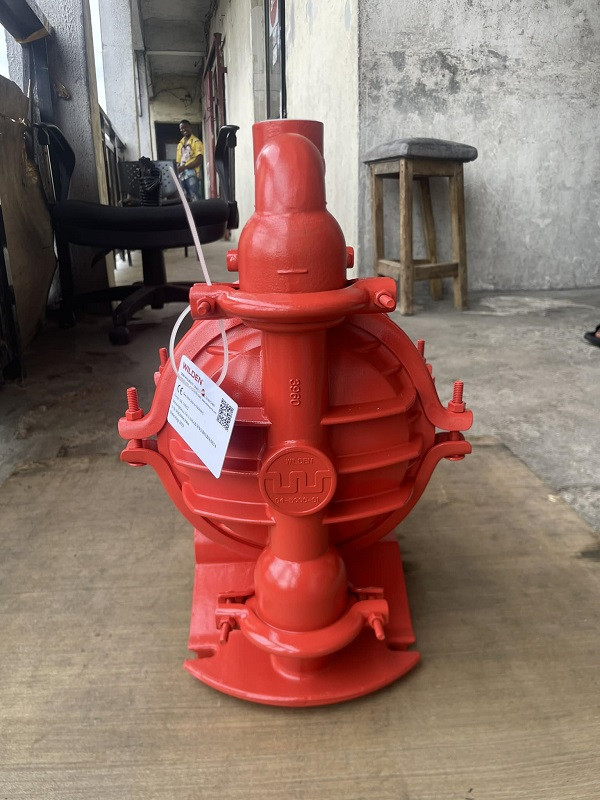

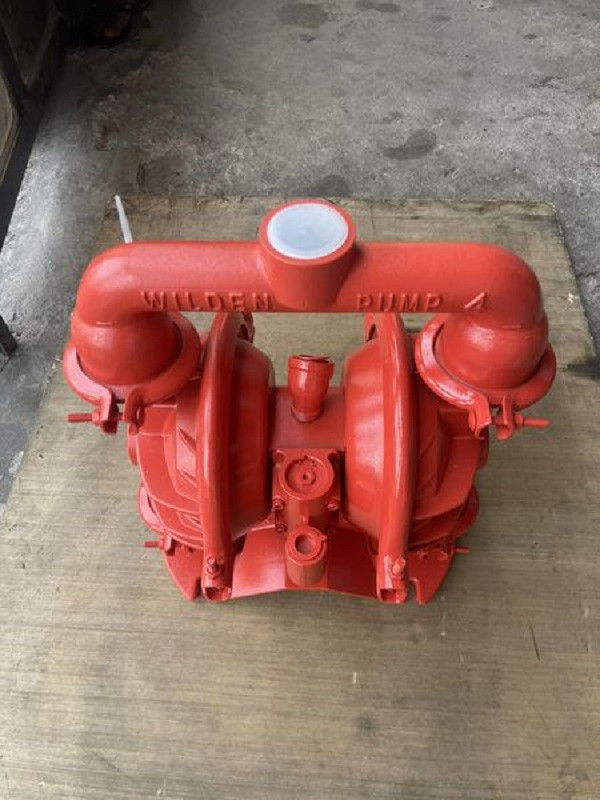

Wilden T4 38 mm (1 1/2'') Turbo-Flo Clamped Metal AODD Diaphragm Pump

The Wilden T4 38 mm (1 1/2'') Turbo-Flo Clamped Metal AODD Diaphragm Pump is a highly reliable and efficient pump designed for various industrial fluid transfer applications. It incorporates advanced Turbo-Flo technology that eliminates mechanical failures, resulting in increased uptime and reduced maintenance. Built to perform in rigorous environments, the T4 pump is ideal for industries such as chemical processing, wastewater treatment, and general manufacturing. With its lightweight clamped design and a powerful flow rate of 307 liters per minute (81 GPM), this pump provides a perfect balance of power and ease of use.

Description

The Wilden T4 AODD Diaphragm Pump offered by Altools Services features the innovative Turbo-Flo air distribution system, which eliminates mechanical components like trip rods, springs, and bearings. This streamlined design reduces wear and tear, simplifies routine maintenance, and extends the operational lifespan of the pump. The external clamped design ensures that the pump’s parts are securely fastened, and the Glyd™ Ring seals in the center block minimize air leakage, further reducing downtime. The T4 model is capable of handling dirty or contaminated air, making it highly adaptable to environments with compromised air quality.

Distributor, Supplier, and Importer: Altools Services

• Website: Altools.ng
• Contact: 07063776040, 08055842884
• Email: sales@Altools.ng

Key Features

• Simplified Air Distribution System: Fewer moving parts mean improved reliability and minimal breakdowns.
• Clamped Construction: Lightweight design allows for easy portability and maintenance.
• Contaminated Air Handling: Operates effectively even in challenging environments with poor air quality.
• Single Point Exhaust: Efficiently expels air through a streamlined exhaust system, maintaining optimal performance.
• Turbo-Flo Technology: Boosts overall efficiency by eliminating common mechanical failure points.
• High Flow Rate: Delivers up to 307 liters per minute (81 GPM), enabling rapid and efficient fluid transfer.

Technical Specifications

• Model: T4 Original Metal
• Item Numbers: 04-1002, 04-9100-12
• Inlet/Outlet Size: 38 mm (1 1/2'')
• Max Flow Rate: 307 LPM (81 GPM)
• Max Air Pressure: 8.5 bar (125 psig)
• Max Air Pressure Ratings:
  • H800 Max: 5.9 bar (85 psig)
  • P200/PTFE Max: 5.2 bar (75 psig)
  • UL Max: 3.4 bar (50 psig)
• Weight: Portable and lightweight due to the clamped design
• Serial Number: PSG 00063964
• Manufacture Date: August 2023
• Dimensions:
  • Height: 500 mm (20 inches)
  • Length: 430 mm (43 cm)
  • Width: 400 mm (40 cm)

Safety Note

In the event of diaphragm failure, the fluid may be expelled through the air exhaust. Always ensure that the air supply is disconnected and pressure is relieved from both air and fluid systems before attempting any maintenance.

Applications

The Wilden T4 Turbo-Flo Clamped Metal AODD Diaphragm Pump is built to meet the demanding needs of various industries requiring robust fluid transfer solutions. It is particularly suited for:

• Chemical Processing
• Wastewater Management
• Industrial Manufacturing
• Paints and Coatings

Altools Services is the exclusive distributor, supplier, and importer of the Wilden T4 Turbo-Flo AODD Diaphragm Pump in Nigeria. For more information or inquiries, feel free to contact us at the provided numbers or email. Visit our website at Altools.ng for further details.
