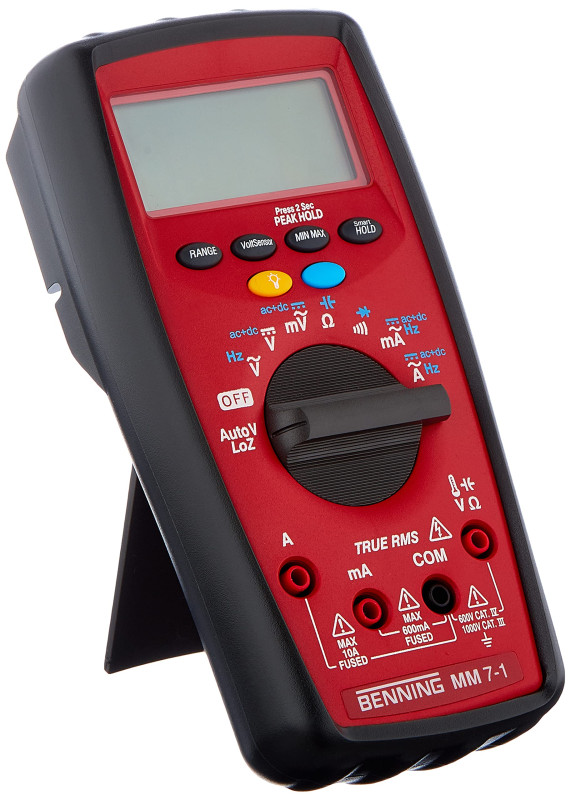

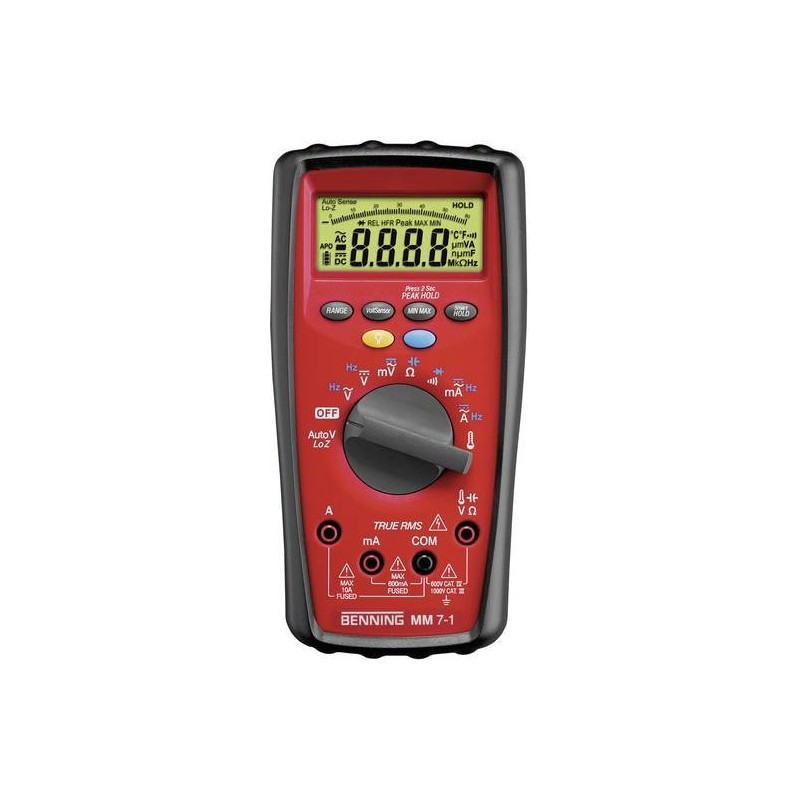

Benning Digital-multimeter Benning Mm 7-1

Benning MM 7-1 Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000

Digital- multimeter with highest safety for industrial applications. The MM 7-1 expands the measuring accuracy by real-effective value measurement (True-RMS). Self-distorted or non-sinus odial Signal processes can be exactly measured. The Volt sensor signals contact free Phase voltages, e. g. for tracking the cable breakages by feeding sites.

Highlights & Details

Automatic suppression of leaked voltage (LoZ)

True RMS measurement

Built-in non-contacting voltage sensor

CAT IV 600V

Facts

Auto range

Auto Power-Off

Measure functions: voltage, resistance, current frequency, capacity temperature

Automatic AC/DC-identification

Stray voltage suppression

Backlight

Min-/Max-/Hold-Function:

Delivery

Protective rubber surround

Pouch

battery

Test leads

Wire temperature sensor with adapter

Magnet hook

User manual.

SPECIFICATIONS

 BENNING MM 7-1

indicating range 6,000

basic accuracy 0.08 %

AC voltage 10 µV – 1000 V

DC voltage 10 µV – 1000 V

AC current 10 µA – 10 A

DC current 10 µA – 10 A

resistance 0.1 Ω – 40 MΩ

continuity / diode yes / yes

frequency 0.01 Hz - 100 kHz

capacity 1 nF – 10 mF

temperature - 40°C up to + 400°C

voltsensor yes

memory HOLD, MAX / MIN

measuring method TRUE RMS

measuring category CAT IV 600 V

item no. 044085
