3.5-inch spark arrestor

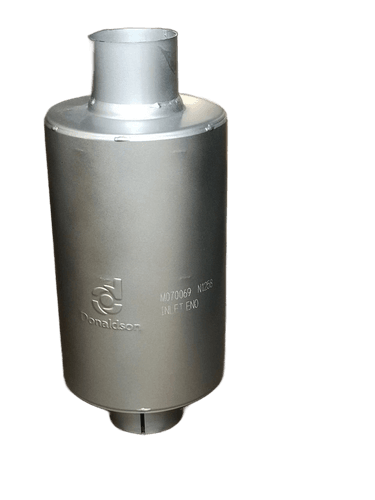

3.5-Inch Spark Arrestor

The 3.5-inch spark arrestor is engineered to prevent hazardous sparks from escaping through engine or machinery exhaust systems. Designed for high-performance environments, it ensures compliance with safety standards while protecting equipment, operators, and surrounding areas from potential fire risks. Its rugged build allows it to function reliably in harsh industrial, construction, and agricultural conditions.

Key Features:
– Efficient spark-trap stainless-steel mesh
– Corrosion-resistant housing
– Universal 3.5'' inlet for easy installation
– High-flow design without restricting exhaust performance

Technical Specifications:

3.5 Inch Exhaust Spark Arrestor

Technical Specifications

Brand: Donaldson

Manufacturer: Donaldson

Assembled Product Dimensions (L x W x H): 17.60 x 9.00 x 9.00 Inches

Part Type: Flame Arrestor

Technical Specifications

Muffler Outlet Diameter Designation: Inside Diameter: 3.5 inch

Muffler Inlet Diameter Designation: Inside Diameter: 3.5 inch

Muffler Outlet Connection Type: Pipe Connection

Muffler Inlet Connection Type: Pipe Connection

Body Diameter: 7.5 inch (190mm)

Body length: 12 inch (300mm)

Overall length: 18.4 inch (460mm)

projected inlet and outlet length: 3.5 inch (90mm)

Applications:
Ideal for construction equipment, agricultural engines, industrial generators, forestry machinery, and exhaust systems requiring fire prevention.

Distributor & Supplier: Lystus Technical
