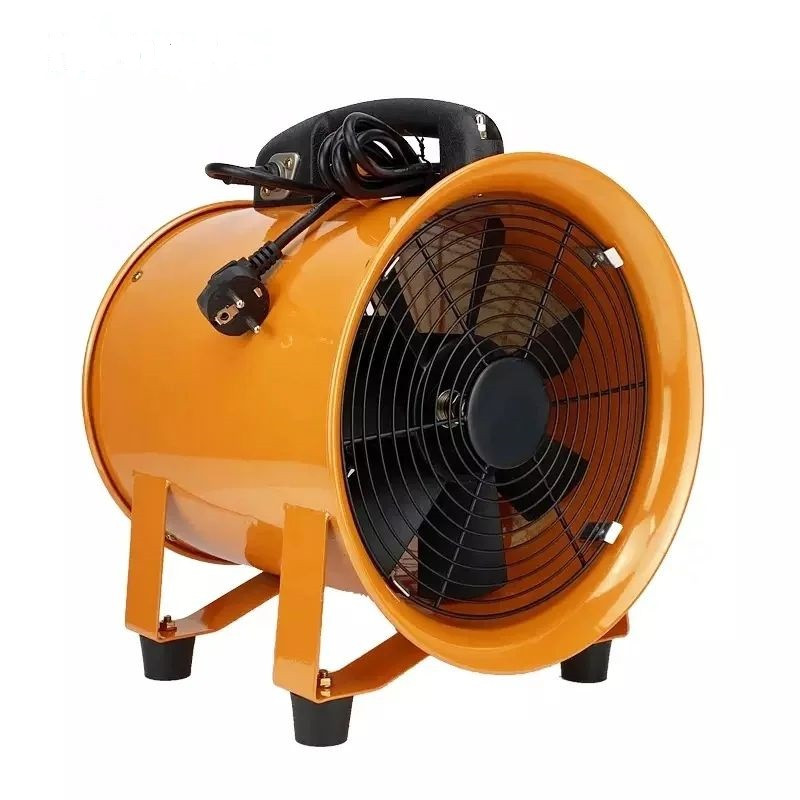

14" High Speed Portable Ventilation Axial Exhaust Fan With Flexible Air Duct Sht-35

14  Inch  350mm Certified Ventilators 750W Explosion Proof Fan
The 350 mm axial flow fan is designed to be heavy duty and compact. Explosion Proof Motor of speed: 3450Rpm offers large flow 82m3/min and reliability, suitable for even the most demanding industrial, construction and workshop applications.

key Features
14 inch Rated Ventilator
Watts: 750W. EX rated explosion proof fan.
Explosion Proof Motor
Fast Speed: 2800 rpm. Low Noise: 69 dB(A).
Portable & Compact
Compact and heavy duty metal fan, metal construction, easy use and storage. Large Capacity
Diameter: 14 inch/ 350 mm, Capacity: 82 m³/min with a durable grill.
Stable Rubber Feet
4 rubber feet for effortless to move. 2 more rubber feet free for easy replacement. Wide Application
Widely used for ventilation in office,oil,military industry,chemical industry,medicine,metallurgy,etc.

Specifications
Diameter: 14 inc / 350 mm
Watts: 750W
Speed: 2800 RPM
Capacity: 77 m³/min
Static: 598Pa
Noise: 69 dB(A)
Fan Size: 53 x 42 x 40  cm

HIgh Speed Portable Axial Ventilation Exhaust Fan
Feature
1.Novel outlook,excellent craftwork,novel style
2.Support and handle flexible using,moveable operation
3.Utilizes CAD optimized design for blade and air outlet
4.Strong wind power,medium pressure
5.Aluminum alloy blade
6.Connecting a flexible soft duct, high pressure under long distance
Application
1.It is special manufactured for underground cable materials,shipping making
2.Blowing bad gas when welding workshop, ship building, canning, bridge
3.Exhaust for firefighting, piping construction and in other violent working situation

Model
(No.)Size (mm)Voltage (v)PhaseFrequency (Hz)Power (W)Revolution (rpm)Air Flow (m3/h)Pressure  (pa)Noise (pa)SHT-20200/8''110/220150/602302800/3300150024563SHT-25250/10"110/220150/603202800/3300258029468SHT-30300/12"110/220150/605202800/3300390037371SHT-35350/14"220/3801/350/607502800/3300492059876SHT-40400/20"220/3801/350/6011002800/3300576070080SHT-45450/18"220/3801/35015002800972097283
